FRP Composite Poles for Ports
FRP Composite Poles for Ports, Harbours, and Marine Infrastructure
Port environments are among the harshest civil installations in India. Salt spray, monsoon humidity, sulphur from cargo emissions, hydraulic oils, and continuous heavy-vehicle vibration combine to destroy steel and concrete poles within a fraction of their design life. Helipole FRP composite poles are engineered specifically for marine and coastal industrial environments — with proven service at Kakinada Sea Port and the Visakhapatnam coastal corridor.
Why Composite Poles for Marine Environments
- Zero salt-induced corrosion: Glass fibre and resin matrix do not react with sodium chloride. No surface pitting, no structural degradation, no rebar exposure.
- Hydrophobic surface: Water and humidity do not penetrate the pole structure — eliminating freeze-thaw and absorption-driven failures.
- Chemical resistance: Resists sulphur, hydraulic oils, fuel spills, and cargo dust common in container yards and bulk terminals.
- Non-conductive: Critical safety advantage near high-voltage container handling equipment and reefer power infrastructure.
- 40-50 year service life: Outlasts steel by 4-5x in equivalent marine exposure.
- No coating maintenance: No annual repainting or galvanising touch-up required — a major operational cost saving for port authorities.
Port Applications
- Container terminal yard lighting
- Cargo berth and jetty lighting
- Bulk handling area and stockyard lighting
- Internal port road and access road lighting
- Dry-dock and ship-repair facility lighting
- Port boundary, security, and CCTV mounting poles
- Customs, freight forwarder, and CFS area lighting
- Naval base and coast guard installation lighting

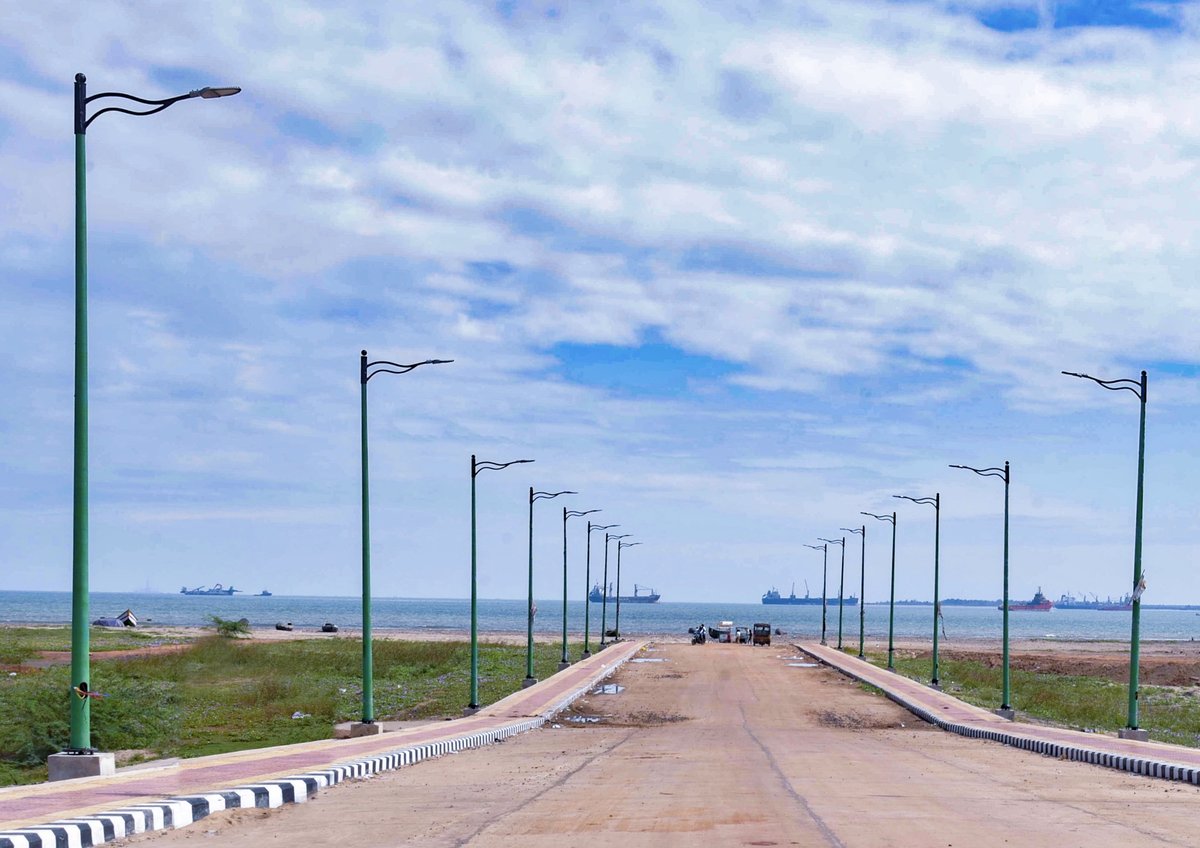

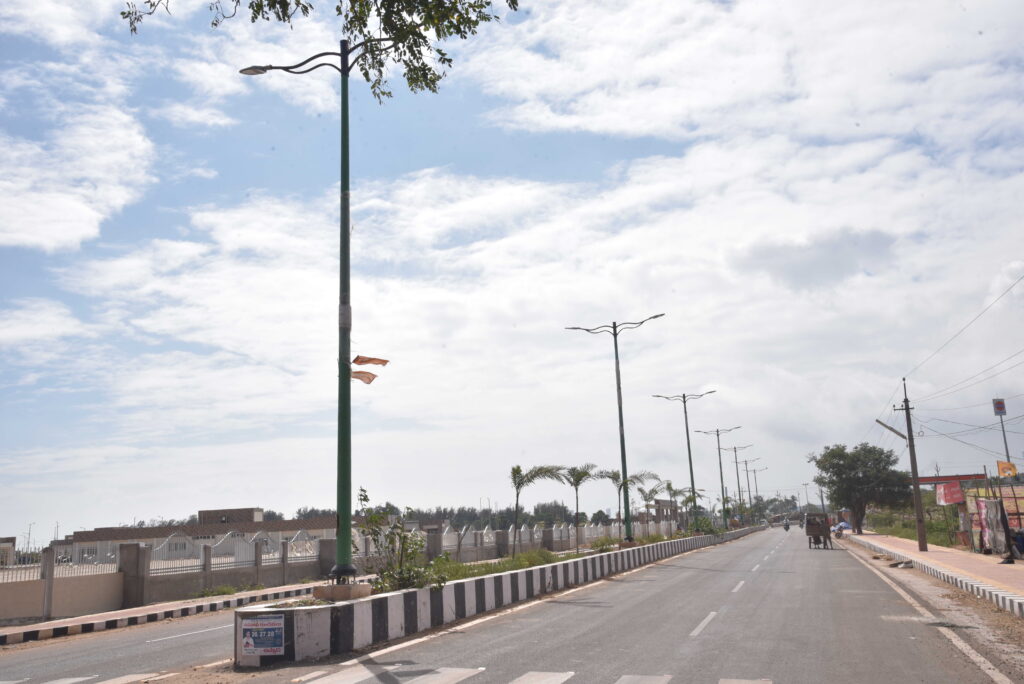

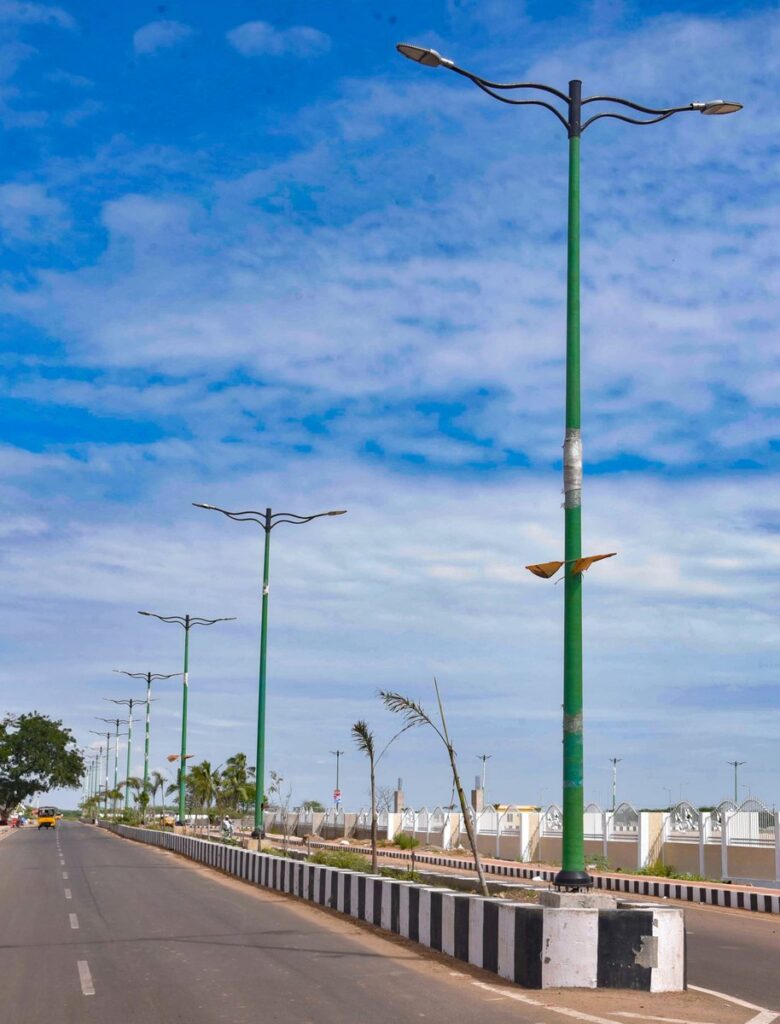

Reference Project: Kakinada Sea Port
Helipole supplied FRP composite lighting poles to Kakinada Sea Port on the Andhra Pradesh coast. The installation has remained in continuous service through coastal humidity, salt spray, and multiple cyclonic events — with zero corrosion, zero structural failures, and zero coating maintenance. A detailed Kakinada Sea Port case study is available on request.
Specifications
- Heights: 8m, 9m, 10m, 12m, 15m; high-mast configurations available
- 180 kmph wind load rating — suitable for cyclone-prone coastal locations
- Reinforced base section for marine grade installation
- Burial type or flange-mounted on RCC foundation
- Multi-arm configurations for area floodlighting
- Custom port-specific colours (yellow/black, RAL safety colours) integral to gel-coat — no repainting
- Internal cable routing protected from saline atmosphere
Enquiry Form
For port pole specifications, marine-grade designs, or quotation for harbour and container yard projects, please contact our team.
