FRP Composite Poles
FRP Composite Poles for Coastal Areas
India's 7,500 km coastline is one of the world's harshest civil-infrastructure environments. Salt spray, monsoon humidity, cyclonic winds, and constant exposure to airborne chlorides destroy steel and concrete poles within a fraction of their nominal design life. Helipole FRP composite poles are engineered specifically for this environment — with installations across the Visakhapatnam coastal corridor, Kakinada port, VUDA park, and coastal infrastructure projects across the Bay of Bengal seaboard.
Why Conventional Poles Fail in Coastal Service
- Galvanised steel: Zinc coating depletes in 3-5 years of coastal exposure. Once base steel is exposed, structural corrosion accelerates rapidly.
- Painted steel: Coastal paint fails faster than zinc — usually within 2-3 years — requiring continuous touch-up programmes.
- Concrete: Chloride ions penetrate microcracks and reach the rebar. Rebar corrosion is invisible until catastrophic failure, often without warning.
- Aluminium: Galvanic corrosion at fittings and bases; pitting corrosion in salt spray.
Why FRP Composite Solves This
- 180 kmph wind load rating: Verified through ANSYS analysis and physical testing — suitable for Category 3-4 cyclone zones
- Zero salt-induced corrosion: Glass fibre and resin matrix are chemically inert to chlorides
- Hydrophobic surface: Water beads off; no moisture absorption into the structure
- UV-stabilised: No surface chalking, fading, or coating breakdown under tropical sun
- Non-conductive: No risk of stray current corrosion from nearby DC infrastructure
- 40-50 year service life in full coastal exposure — 4-5x longer than steel
- No painting or coating maintenance: Zero recurring operating cost
Coastal Applications
- Beach road and seafront promenade lighting
- Coastal highway and causeway lighting
- Coastal parks, public spaces, and tourism infrastructure
- Port and harbour approaches
- Coastal industrial estates and SEZs
- Naval and coast guard installations
- Coastal residential and resort developments
- Lighthouses, beacons, and navigational aid mounts
Reference: Visakhapatnam Coastal Corridor

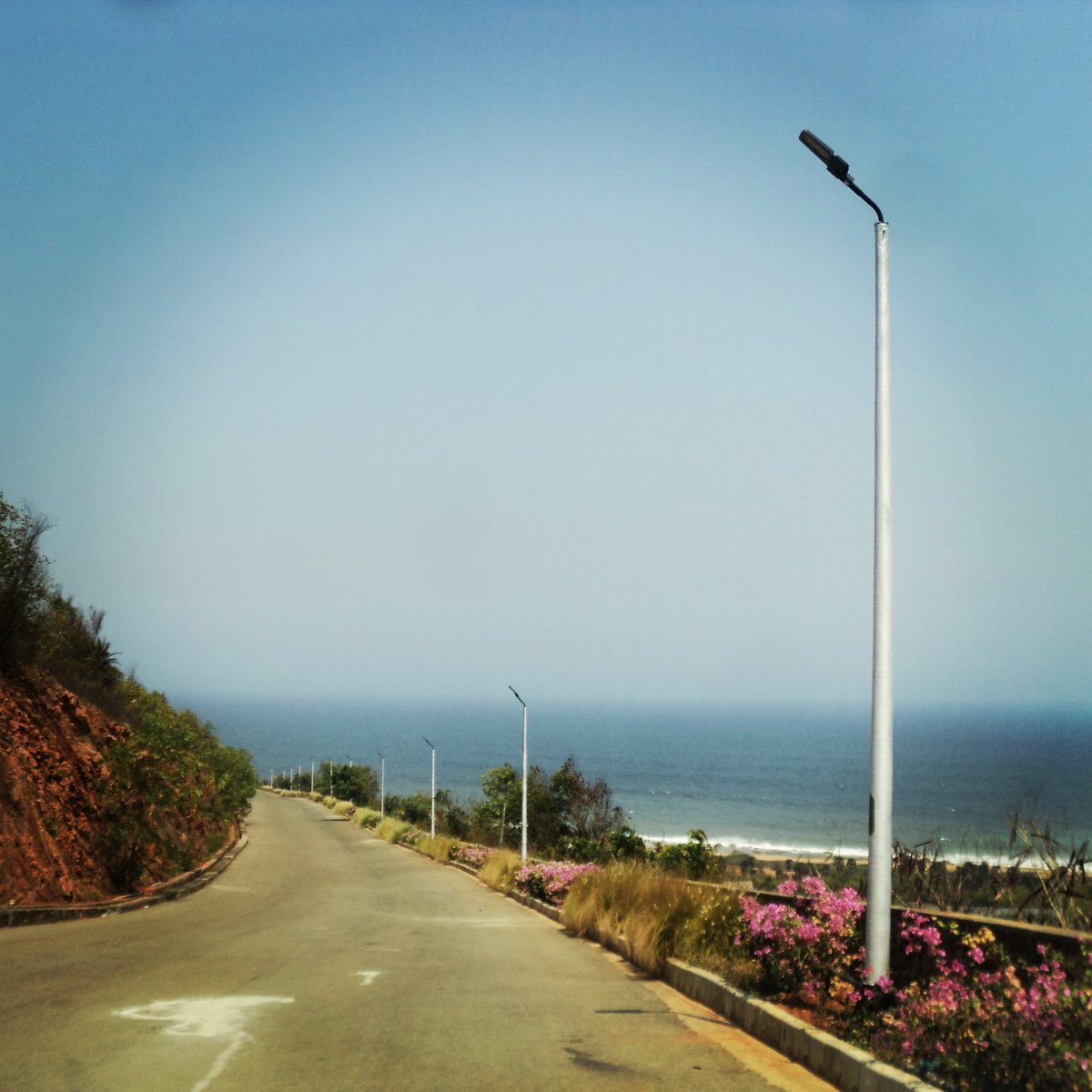

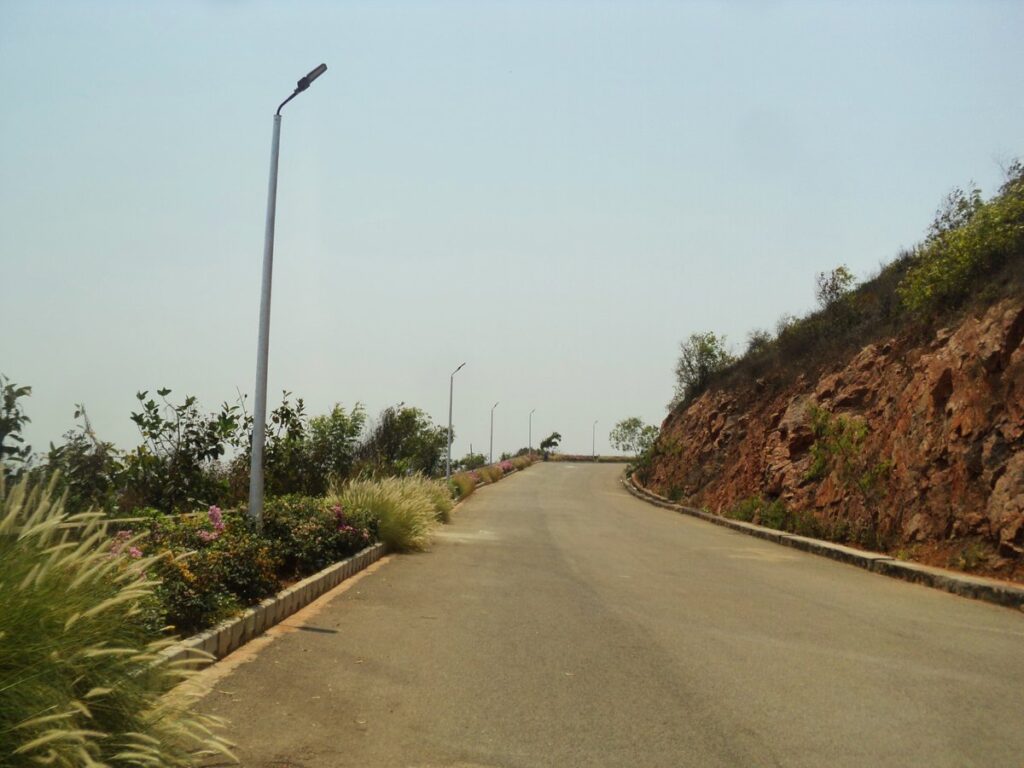

Helipole’s manufacturing facility in Visakhapatnam sits directly on the Bay of Bengal coast. Our coastal pole installations across the city — including VUDA park, Kakinada port, and Vizag’s beach road infrastructure — have remained in continuous service through cyclones Hudhud, Titli, Fani, and Asani with zero structural failures and zero replacement requirement. Detailed case studies are available on request.
Specifications
- Heights: 4m to 12m standard; custom up to 15m
- 180 kmph wind load rating
- 65-70% glass fibre content with vinyl ester resin for marine durability
- Burial type or flange-mounted on RCC foundation
- Round tapered, octagonal, or square sections
- Internal cable routing protected from saline atmosphere
- Standards: BS EN 40, IS 875, ASTM D2996
Enquiry Form
For coastal pole specifications, wind load calculations, or project-specific quotation, please contact our team.
